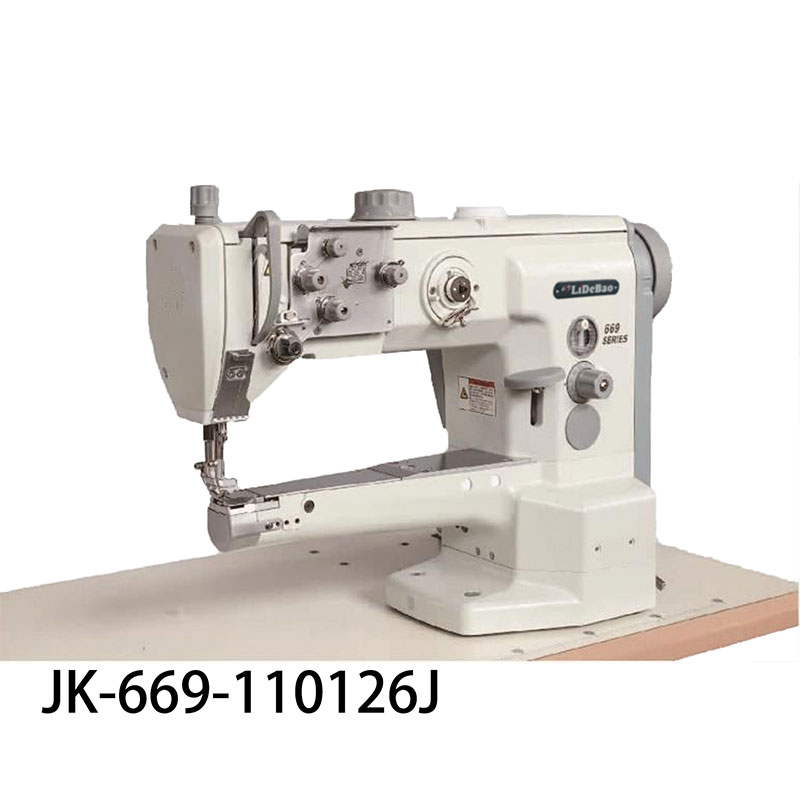

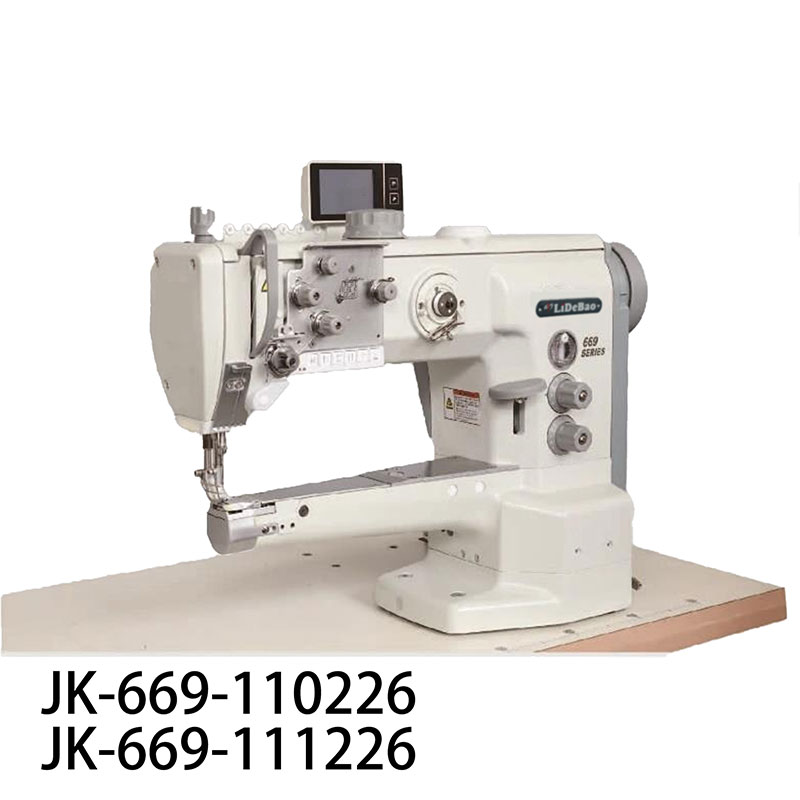

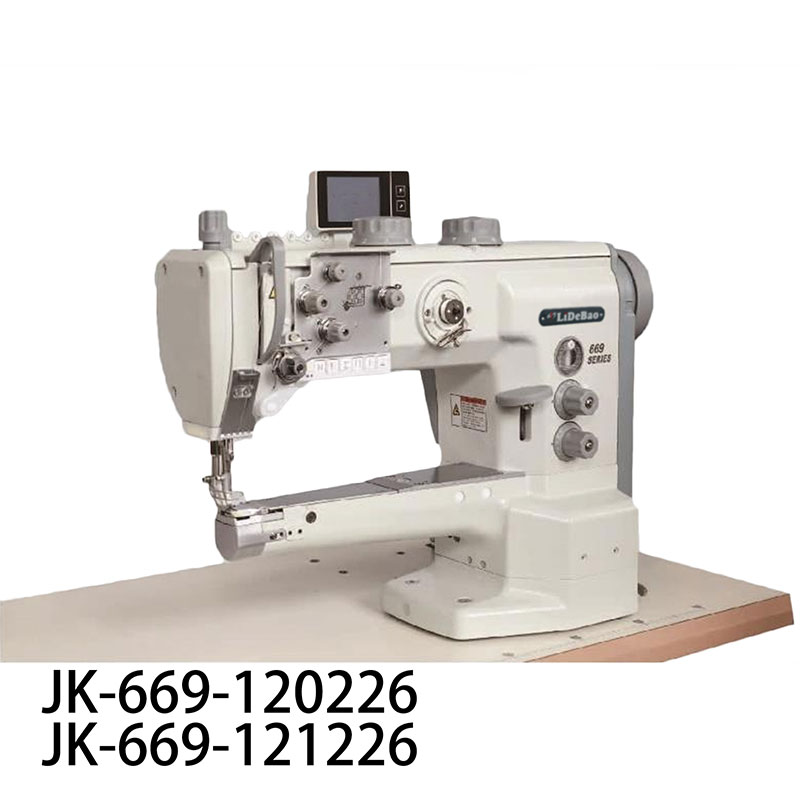

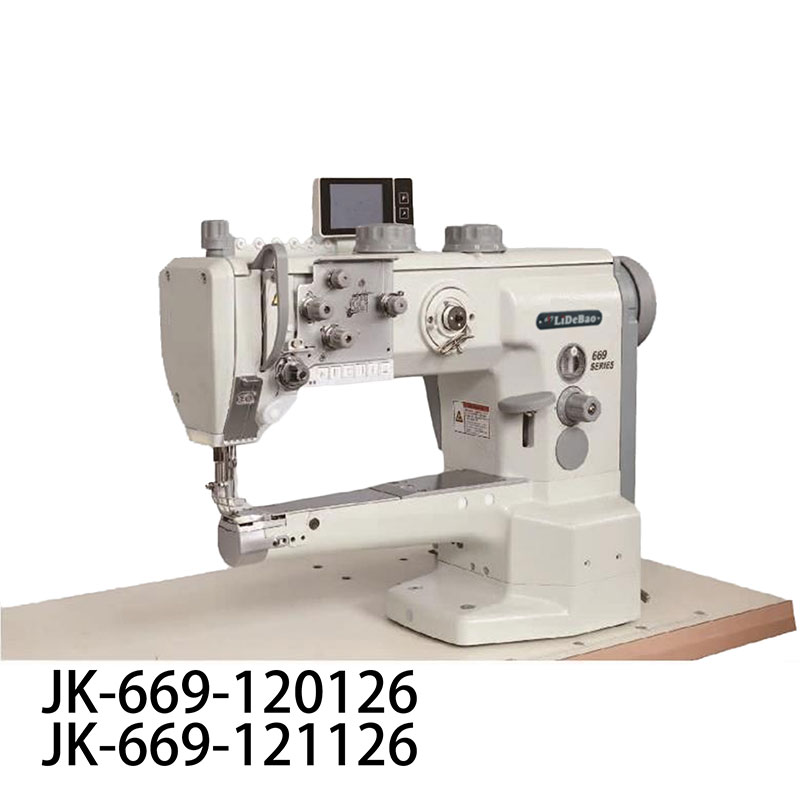

● JK-669 Cylinder Arm Walking Foot Sewing Machine Series adopts unison feeding mechanism, feed dog, needle bar and alternating feet feed at same time, it can ensure the feeding smoothly.
● Adopt horizontal large rotary hook(26mm), can save the time to changing the bobbin.
● The extremely high sewing foot lift up to 20 mm max. facilitates the feeding and removing of bulky work pieces.
● Built-in bobbin winder.
● High top feed stroke up to 9 mm allows the safe climbing over thick material plies.
● Up to 9 mm long stitches for standard seams and decorative top stitching.
● The large operation space (335 mm wide and 125 mm high)facilitates the handling of tubular work pieces.
● Excellent view on the sewing area Integrated bobbin winder with winding starting aid.
● Easily maintenance.
● Low noise level.
● One-year quality assurance and lifetime remote technical service support.
| Mortor | 750W |
| Speed | 3000s.p.m |
| Stitch length | ＜9mm |
| Sewing thickness | ＜12mm |
| Presser foot lift | ＜20mm |
| Needle | Dp*35 |
| Hook | 26/32mm |
| Working space | 335*125mm |
| Weight | 70kg |
| Head Package size | 75*39*73cm(L*W*H) |

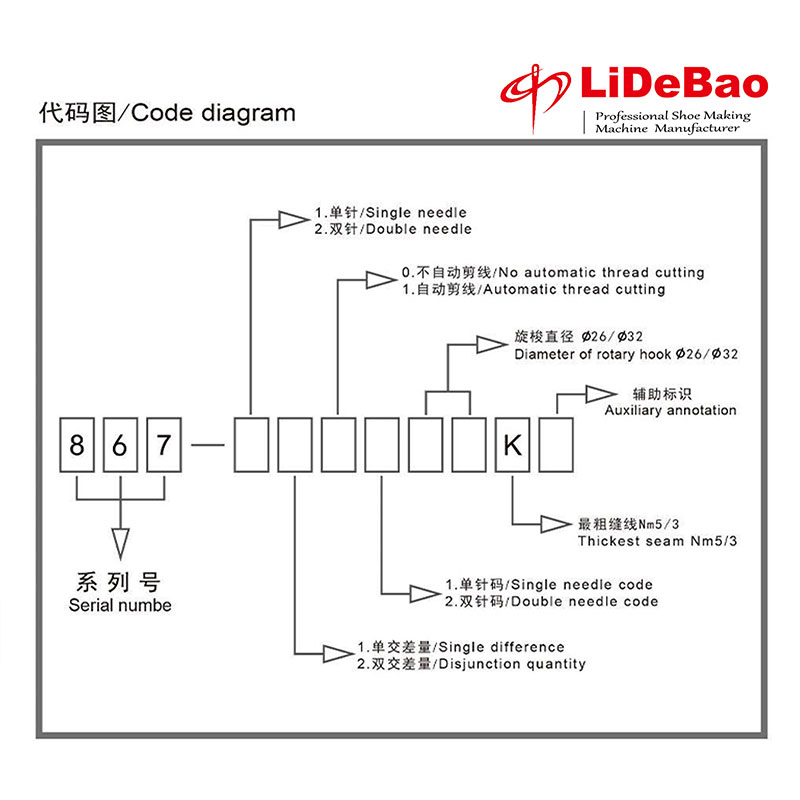

● Feature Options:
1. Sewing Foot Stroke Setting Wheel: One or two.
2. Stitch Length Setting Wheel: One or two.
3. Thread Cutting Function: Required or not required.
4. Bobbin Diameter: 26mm or 32mm.
5. Motor: Direct drive motor or hanging servo motor.
