Industrial Heavy Duty Cylinder Arm Sewing Machine
  • Industrial Heavy Duty Cylinder Arm Sewing MachineIndustrial Heavy Duty Cylinder Arm Sewing Machine
  • Industrial Heavy Duty Cylinder Arm Sewing MachineIndustrial Heavy Duty Cylinder Arm Sewing Machine

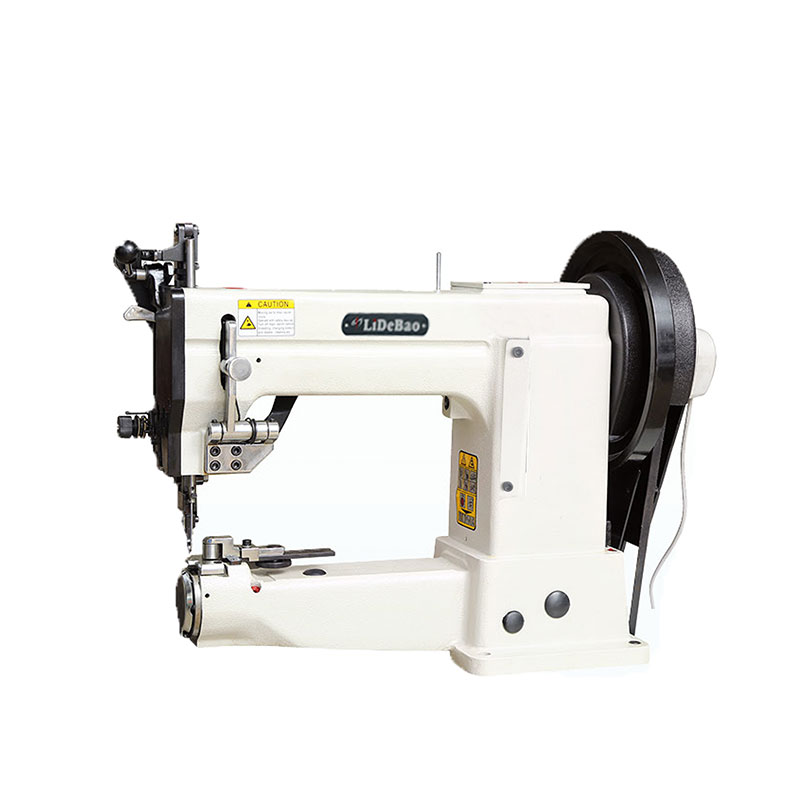

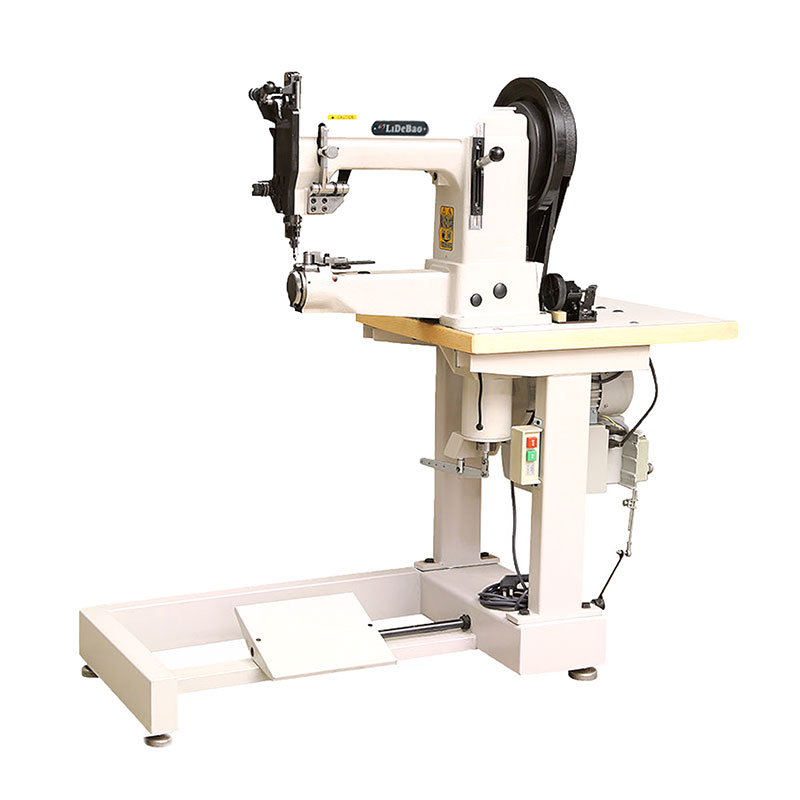

Industrial Heavy Duty Cylinder Arm Sewing Machine

Model:JK-205

Lidebao is a manufacturer and supplier focusing on special sewing machines. In the field of shoe sewing machines, we designed the JK-205 Industrial Heavy Duty Cylinder Arm Sewing Machine Presser Foot Feeding. It is suitable for sewing the edges of soles of slippers, sandals, and beach shoes or other narrow sewing.Can also be used for tents, bags, handbags, seat belts, seat pads, saddles, etc.

Lidebao JK-205 Industrial Heavy Duty Cylinder Arm Sewing Machine Presser Foot Feeding

● The presser foot can be lifted up to 20mm, which is suitable for sewing very thick materials. It can also be used for tents, bags, handbags, seat belts, seat pads, saddles, etc.
● Large shuttle to reduce the need to change the bottom line
● The other feeding structures have been removed, and only the presser foot feeding structure remains. This design makes it suitable for sewing in narrower areas, such as the edges of soles of slippers, sandals, and beach shoes or other narrow sewing.
● Strong penetration, suitable for sewing thick materials and thick threads
● One-year quality assurance and lifetime remote technical service support.

Lidebao JK-205 Industrial Heavy Duty Cylinder Arm Sewing Machine Presser Foot Feeding Parameter (Specification)

Stitch length <11mm
Sewing thickness <20mm
Needle DY*3
N.W 145kg
G.W 165kg
Package size 115*60*150cm(L*W*H)

Lidebao JK-205 Industrial Heavy Duty Cylinder Arm Sewing Machine Presser Foot Feeding Feature And Application

● Lidebao JK-205 Industrial Heavy Duty Cylinder Arm Sewing Machine Presser Foot Feeding suitable for sewing in narrower areas, such as the edges of soles of slippers, sandals, and beach shoes.

Lidebao JK-205 Industrial Heavy Duty Cylinder Arm Sewing Machine Presser Foot Feeding

Lidebao JK-205 Industrial Heavy Duty Cylinder Arm Sewing Machine Presser Foot Feeding Details

● The included LED light allows the operator to see more clearly
● Pulley positioning makes sewing stitches more even and beautiful

Lidebao JK-205 Industrial Heavy Duty Cylinder Arm Sewing Machine Presser Foot Feeding

● Extra large bobbin reduces the need to change the bobbin thread and improves efficiency

Lidebao JK-205 Industrial Heavy Duty Cylinder Arm Sewing Machine Presser Foot Feeding

● Provide separate packaging for the machine, which can make the volume smaller and reduce shipping costs

Lidebao JK-205 Industrial Heavy Duty Cylinder Arm Sewing Machine Presser Foot Feeding

● Multiple fixations ensure safe transportation of the machine.

Lidebao JK-205 Industrial Heavy Duty Cylinder Arm Sewing Machine Presser Foot Feeding Lidebao JK-205 Industrial Heavy Duty Cylinder Arm Sewing Machine Presser Foot Feeding Lidebao JK-205 Industrial Heavy Duty Cylinder Arm Sewing Machine Presser Foot Feeding Lidebao JK-205 Industrial Heavy Duty Cylinder Arm Sewing Machine Presser Foot Feeding Lidebao JK-205 Industrial Heavy Duty Cylinder Arm Sewing Machine Presser Foot Feeding Lidebao JK-205 Industrial Heavy Duty Cylinder Arm Sewing Machine Presser Foot Feeding
