● 12 different patterns can be set by interchangeable cams. You can switch back to straight sewing during pattern sewing.
● The transport of the material is carried out by a left and right feed dog, which can be adjusted separately.
● Quick stitch length adjustment, when ruffling sewing is required partially during sewing.
● The amount of ruffling can be changed manually by knee control during working sewing operation.
● Computer positioning motor, needle positioning function, automatic presser foot lifting function, speed adjustment
● One-year quality assurance and lifetime remote technical service support.
| Mortor | 750W |
| Speed | 400R/min |
| Stitch length | 0-8mm |
| Needle spacing | 6/7.5mm |
| Needle | DD*1 |
| N.W | 180kg |
| G.W | 240kg |
| Package size | 130*80*150cm(L*W*H) |

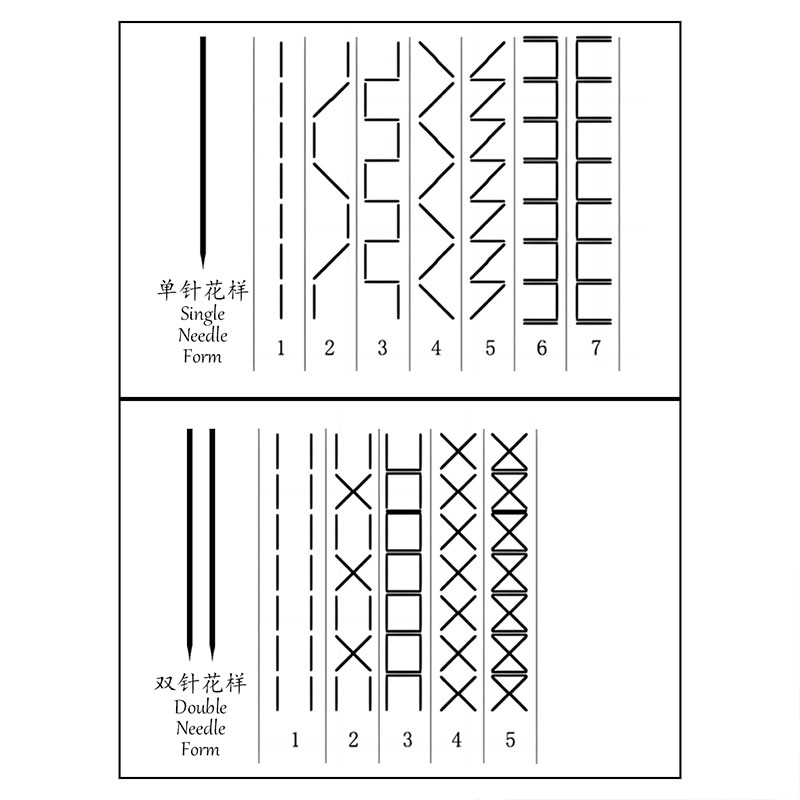

Pattern form:

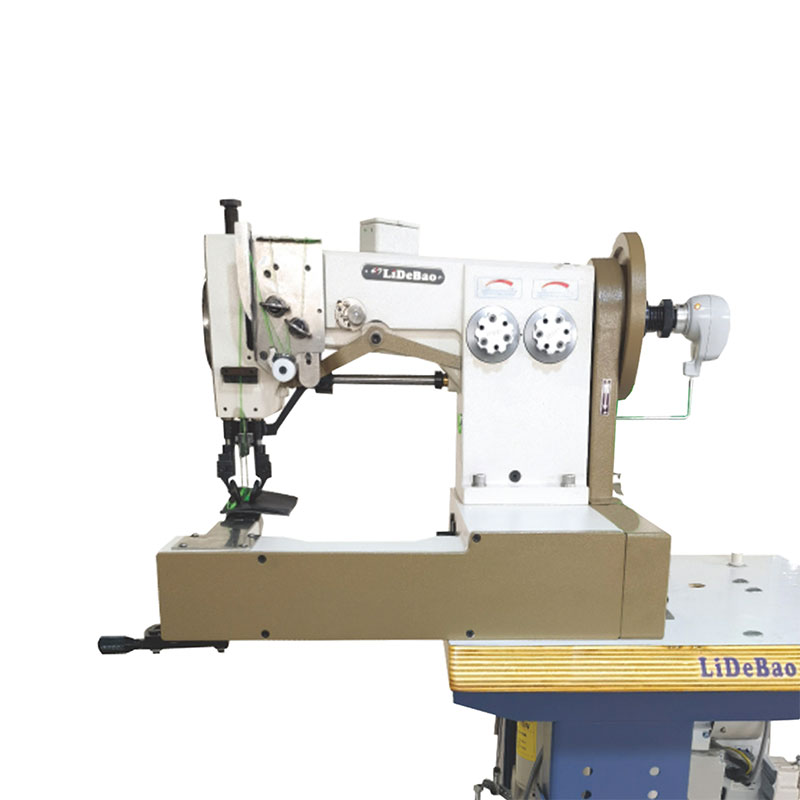

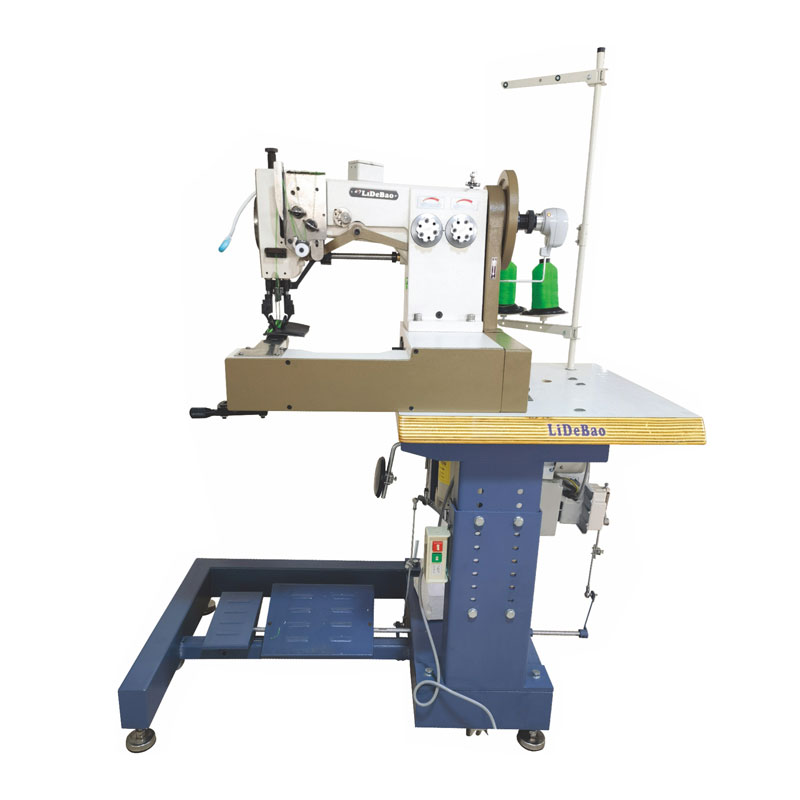

● Lidebao JK-05 Moccasin Pattern Stitching Machine suitable for sewing pattern thread for moccasin uppers.
● The wrinkle function sewing can be realized by adjusting the up and down feeding speed
● It can also be used for the pattern of the shoe edge or other sewing that requires patterns.
● Can be sewn with single or double needle
● Switch pattern wrench
● The air pump device adds switching between sewing square and straight line designs
● Right and left stitch length adjustment
● The amount of ruffling can be changed manually by knee control during working sewing operation.
● The included LED light allows the operator to see more clearly
● Multiple fixations ensure safe transportation of the machine.
