● Three well-choosen colors, and you can also customize your preferred color.
● The special angle design and movable horns make it more suitable for sewing the side wall soles and uppers of sports shoes, casual shoes, etc.
● The lightweight rocker arm structure design makes the operator less likely to fatigue; the oil-immersed lubrication system will never need to replace the horn under normal use.
● The separated transmission structure will automatically cut off the power supply and stop operation when the sewing thread is jammed to protect the machine from damage.
● The computer positioning motor can automatically position and lift the press foot. The operating speed can be adjusted according to the operator's needs. The maximum speed can reach 2000 revolutions per minute.
● You can choose a gear transmission structure to make the transmission structure more stable and avoid the defect of the chain becoming longer after a period of use.(JK-668)
● The motor is selected to match the appropriate voltage according to the requirements of each country.
● Comes with a premium leather bag containing common repair tools, presser feet, chains, etc.
● One-year quality assurance and lifetime remote technical service support.
| Mortor | 750W |
| Stitch length | 3-13mm（Maximum 15mm selectable） |
| Sewing thickness | 1.5-6mm |
| Needle | Cp*5 |
| N.W | 150kg |
| G.W | 160kg |
| Package size | 115*60*150cm(L*W*H) |

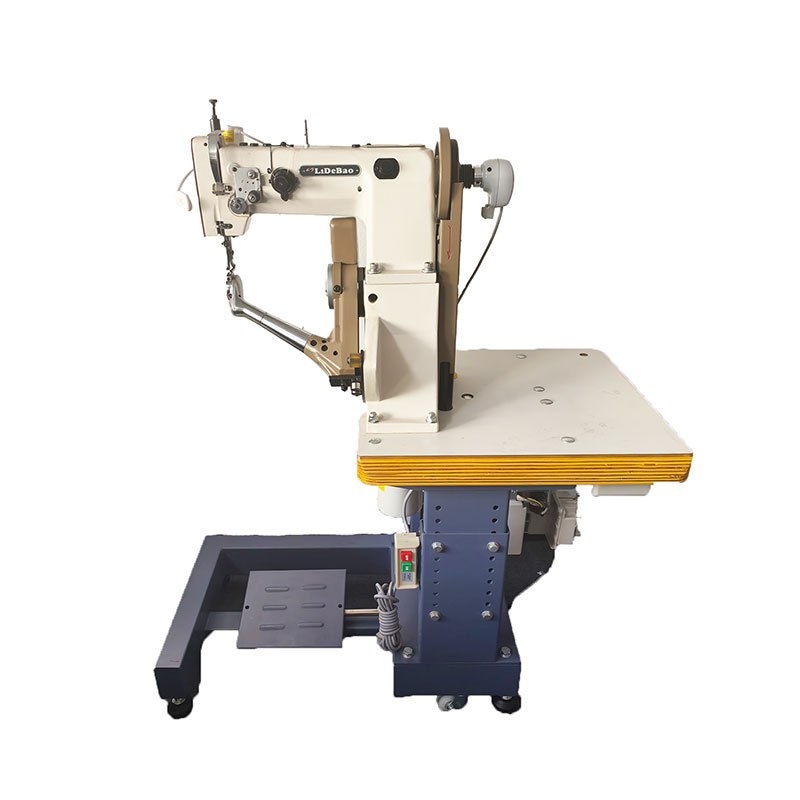

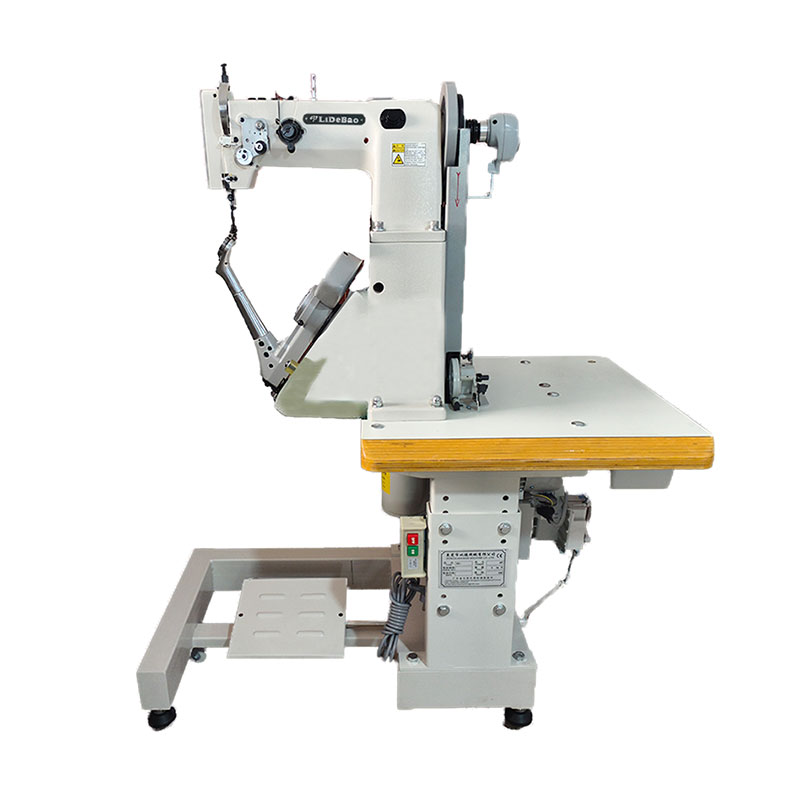

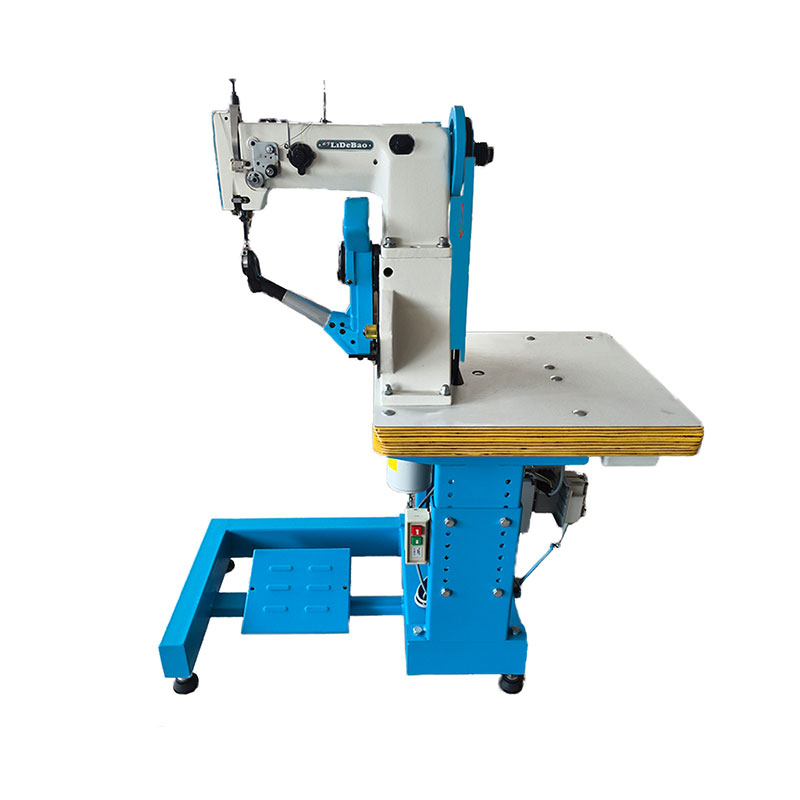

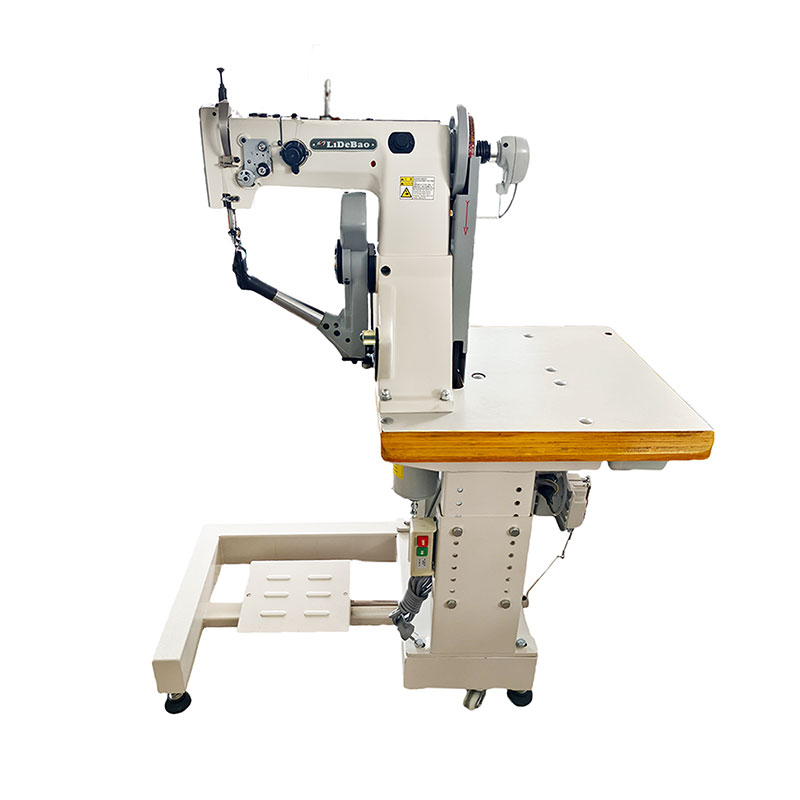

● Lidebao JK-168 Side Wall Sole Stitching Machine Double Lock Stitch suitable for sports shoes, casual shoes and various special sewing that require double lock stitch sewing.

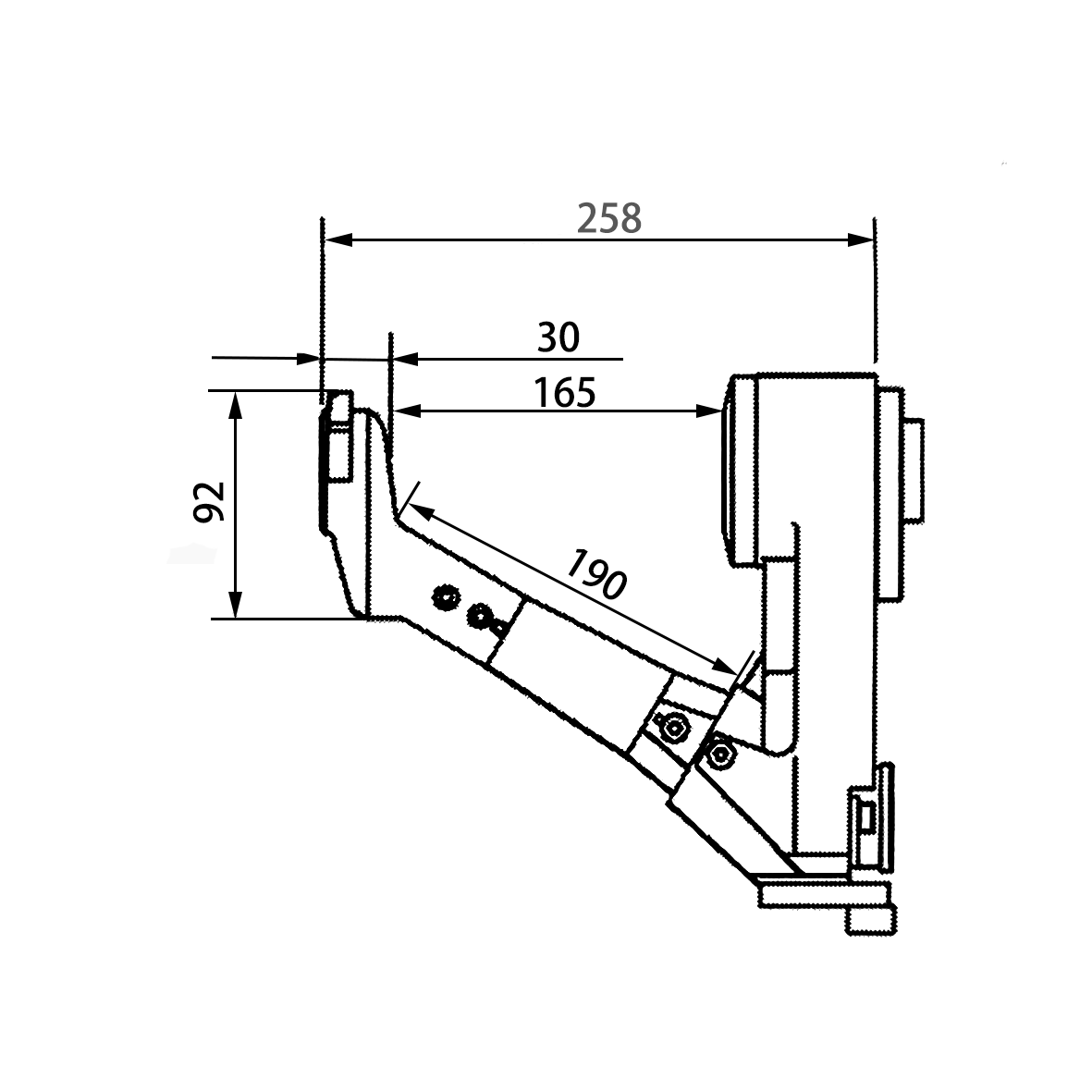

● For shoes of different shapes, a more horizontal angle of the rocker arm can be used
● Lidebao JK-168 Side Wall Sole Stitching Machine Double Lock Stitch can also sew magic stitches
● The included LED light allows the operator to see more clearly
● Convenient stitch length adjustment button
● Servo motor can achieve stepless speed regulation, needle positioning, presser foot positioning functions
● Provide separate packaging for the machine, which can make the volume smaller and reduce shipping costs
Separate packaging size:
Head 62/48/71CM 77KG,
Pedestal and table 90/60/22CM 49KG,
Motor 35/40/40CM 15KG
● Multiple fixations ensure safe transportation of the machine.
