● Three well-choosen colors, and you can also customize your preferred color.

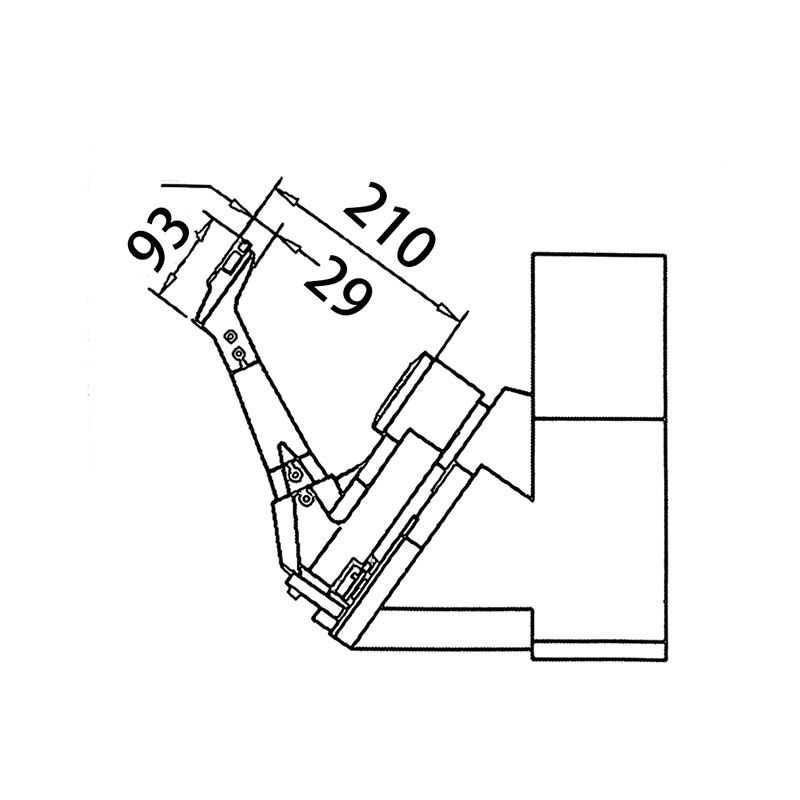

● Compared with the larger bevel design of JK-168-H, it is more suitable for sewing the soles and uppers of beach shoes, sandals and other shoes that require diagonal sewing.The tilted angle makes sewing easier
● The design of the lightweight rocker arm reduces operator fatigue, and the oil-immersed lubrication system ensures the horn won't need to be replaced under normal use.
● The separated transmission structure will automatically cut the power and stop the machine if the sewing thread becomes jammed, protecting it from damage.
● The computer-positioning motor can automatically position and lift the presser foot, with an adjustable operating speed that can reach up to 2000 RPM.
● The motor is selected to match the appropriate voltage according to each country’s requirements.
● Comes with a premium leather bag containing common repair tools, presser feet, chains, etc.
● One-year quality assurance and lifetime remote technical service support.
| Mortor | 750W |
| Stitch length | 3-13mm |
| Sewing thickness | 1.5-6mm |
| Needle | Cp*5 |
| N.W | 160kg |
| G.W | 170kg |
| Package size | 115*60*150cm(L*W*H) |

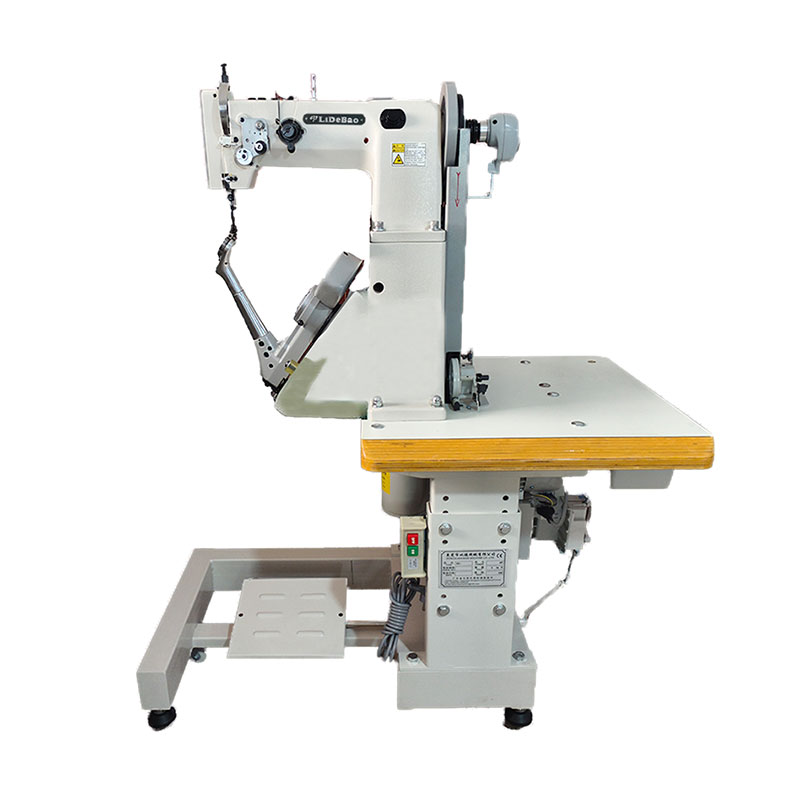

● Lidebao JK-168-HL Slant Side Wall Sole Stitching Machine suitable for sewing the soles and uppers of adult Beach shoes, sandals and other shoes that need to be sewn diagonally.The slanted design makes sewing easier.
● The included LED light allows the operator to see more clearly
● Convenient stitch length adjustment button
● Servo motor can achieve stepless speed regulation, needle positioning, presser foot positioning functions
● Provide separate packaging for the machine, which can make the volume smaller and reduce shipping costs
● Multiple fixations ensure safe transportation of the machine.
